ROBOTIS

ROBOTIS DYNAMIXEL Pro+ H54

Enquire Now ROBOTIS Store
Our Verdict: The essential building block for custom robotics. No other smart servo matches the DYNAMIXEL ecosystem and reliability.

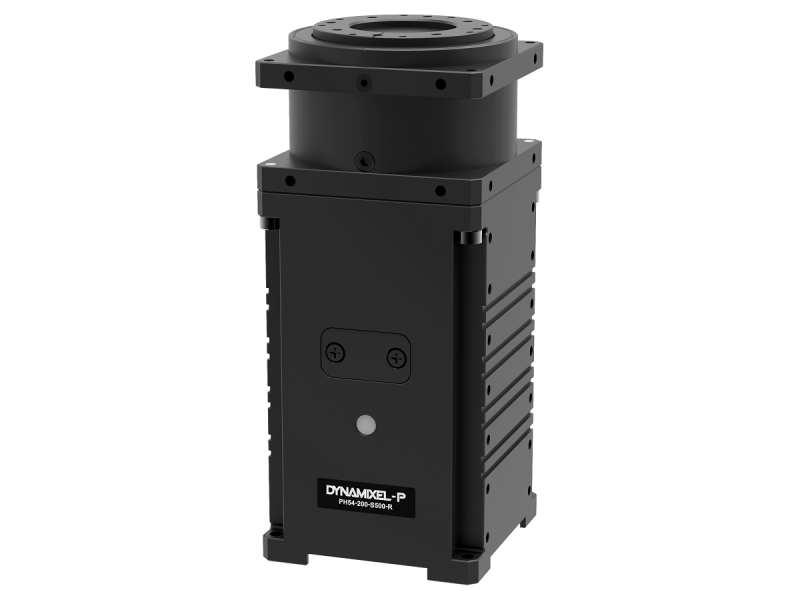

The ROBOTIS DYNAMIXEL Pro+ H54 is a high-torque smart servo actuator designed for building custom robot arms, humanoid robots, and complex multi-DOF platforms. Each servo is a self-contained system with motor, controller, reducer, and communication in a compact package, daisy-chainable via TTL or RS-485.

The H54 series delivers up to 44.7 Nm of torque with precise position, velocity, and current control modes. Built-in PID tuning, temperature monitoring, and overload protection ensure reliable operation. Researchers and builders worldwide use DYNAMIXEL servos as the building blocks for custom robots of every description.

Custom robot arm construction Humanoid robot joint actuation Multi-DOF research platforms Legged robot development

Specifications

Torque 44.7 Nm
Weight 855g
Resolution 501,923 counts/rev
Communication RS-485 (daisy-chain)
Control Modes Position, velocity, current, extended
Voltage 24V

Pros & Cons

A quick summary of where this model performs well and where it falls short.

Pros

  • Exceptional 44.7 Nm torque output
  • Multiple control modes for flexibility
  • Daisy-chain simplifies wiring
  • Built-in protection and monitoring
  • Industry-standard for custom robots

Cons

  • Expensive per actuator
  • RS-485 communication has latency
  • Heavy for smaller robots
  • Requires DYNAMIXEL controller/hub
