Franka Emika

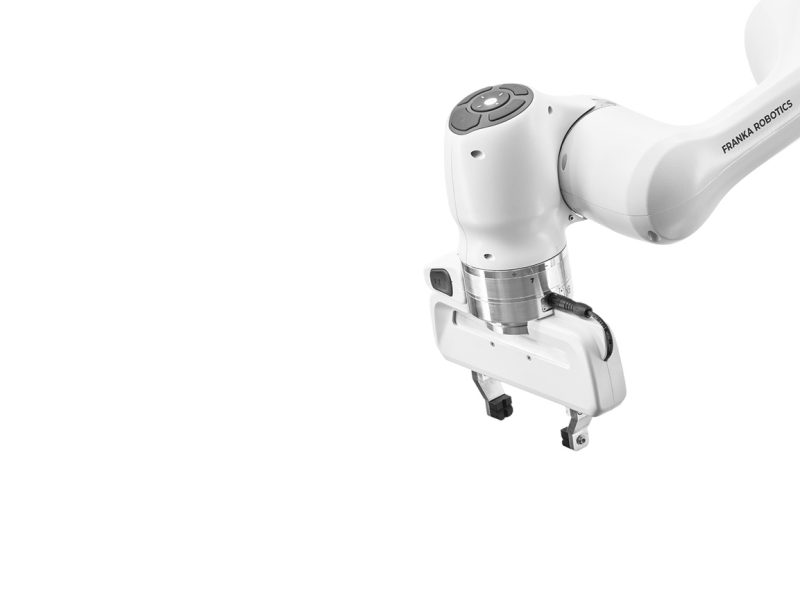

Franka Emika Panda

Enquire Now Franka Emika Store
Our Verdict: The researcher's dream robot arm. Torque sensing in every joint enables manipulation tasks no other cobot can match.

The Franka Emika Panda is the premier research-grade collaborative robot, featuring torque sensors in all seven joints that provide unmatched force sensitivity and dexterity. This makes it uniquely capable of tasks requiring a delicate touch, from assembling electronics to performing laboratory experiments.

Its 7 degrees of freedom allow it to reach around obstacles and into tight spaces that 6-DOF arms cannot access. The Franka Desk software provides an intuitive app-based programming experience, while advanced users can leverage the real-time control interface through C++ and ROS for cutting-edge research applications.

Robotics research and manipulation studies Delicate assembly tasks Laboratory automation Force-sensitive applications

Specifications

Payload 3 kg (6.6 lbs)
Reach 855 mm
Degrees of Freedom 7
Repeatability +/- 0.1 mm
Torque Sensors All 7 joints
Weight 18 kg (39.7 lbs)
Control Rate 1 kHz real-time

Pros & Cons

A quick summary of where this model performs well and where it falls short.

Pros

  • Torque sensors in every joint for unmatched sensitivity
  • 7 DOF for superior dexterity
  • 1 kHz real-time control for research
  • Strong ROS community and support
  • Lightweight at only 18 kg

Cons

  • Only 3 kg payload capacity
  • Not designed for industrial environments
  • Franka Desk software has learning curve
  • Requires dedicated control PC

Interested in this product?

Want to know more about the Franka Emika Panda? Send us an enquiry and we'll get back to you with pricing, availability, and any details you need.

We respect your privacy. Your information will only be used to respond to your enquiry.
